GPT Series Solar Street Light

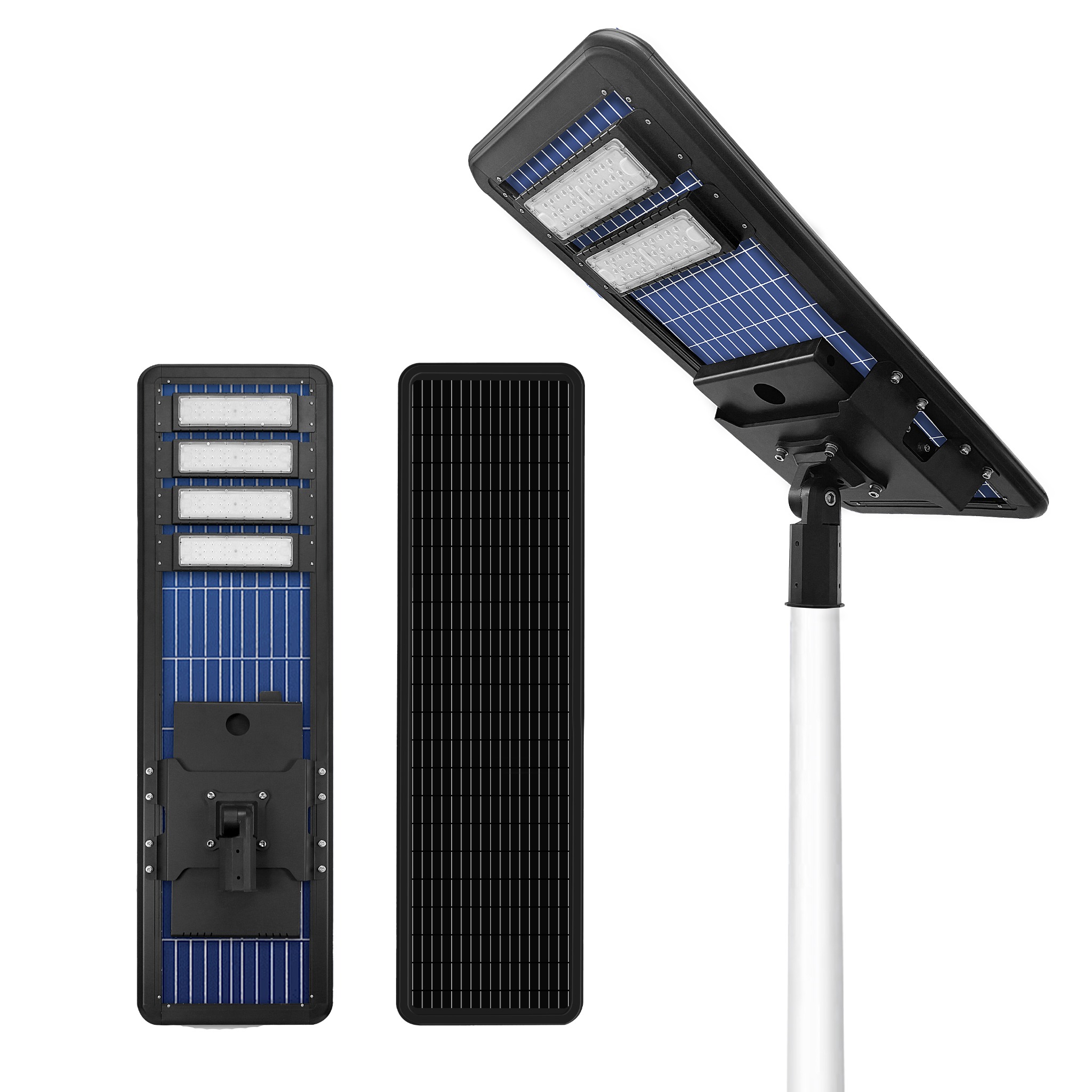

Four model options shown with original WILSOLAR product photographs. Match the final configuration to road width, pole height, operating hours and local solar conditions.
A closer look at the product

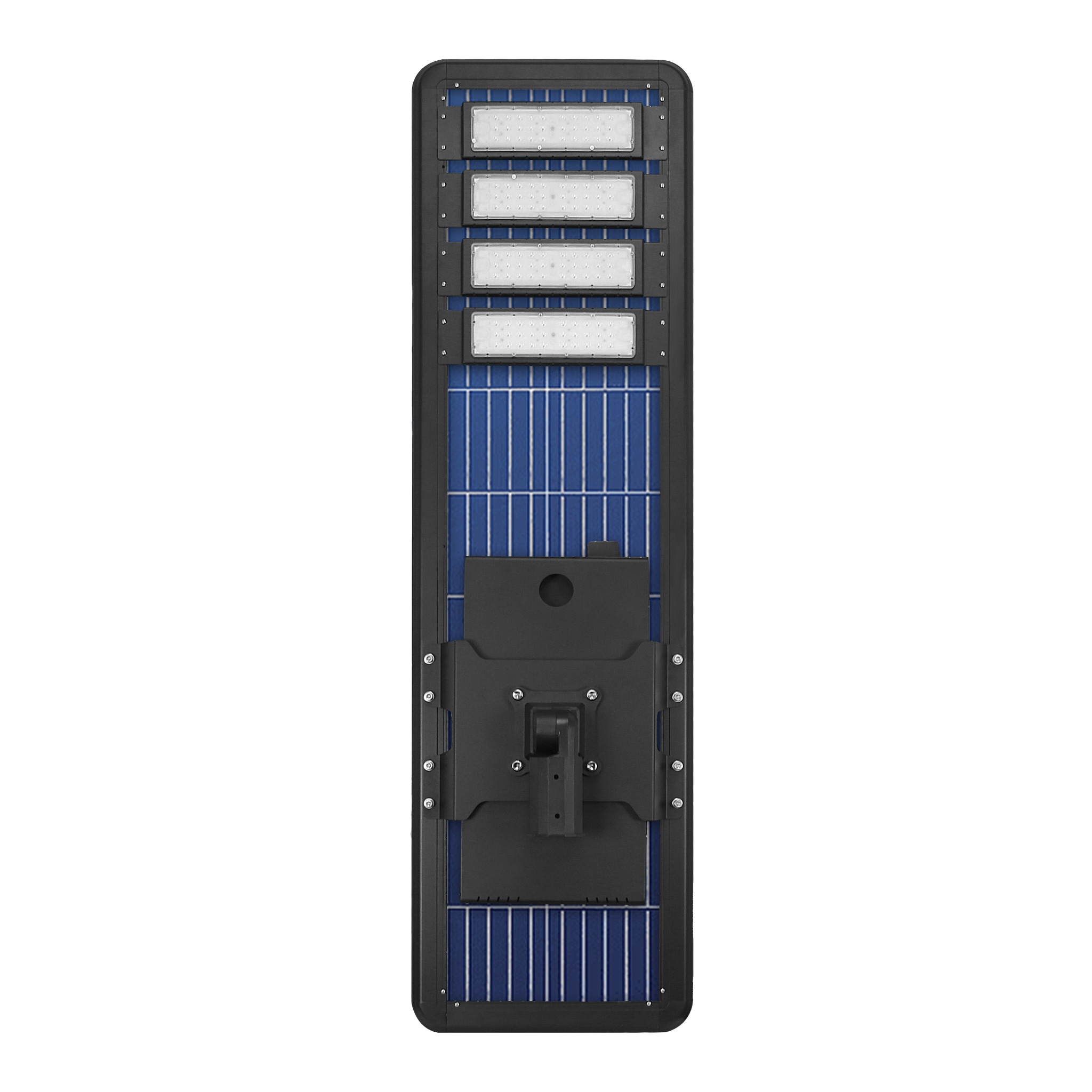

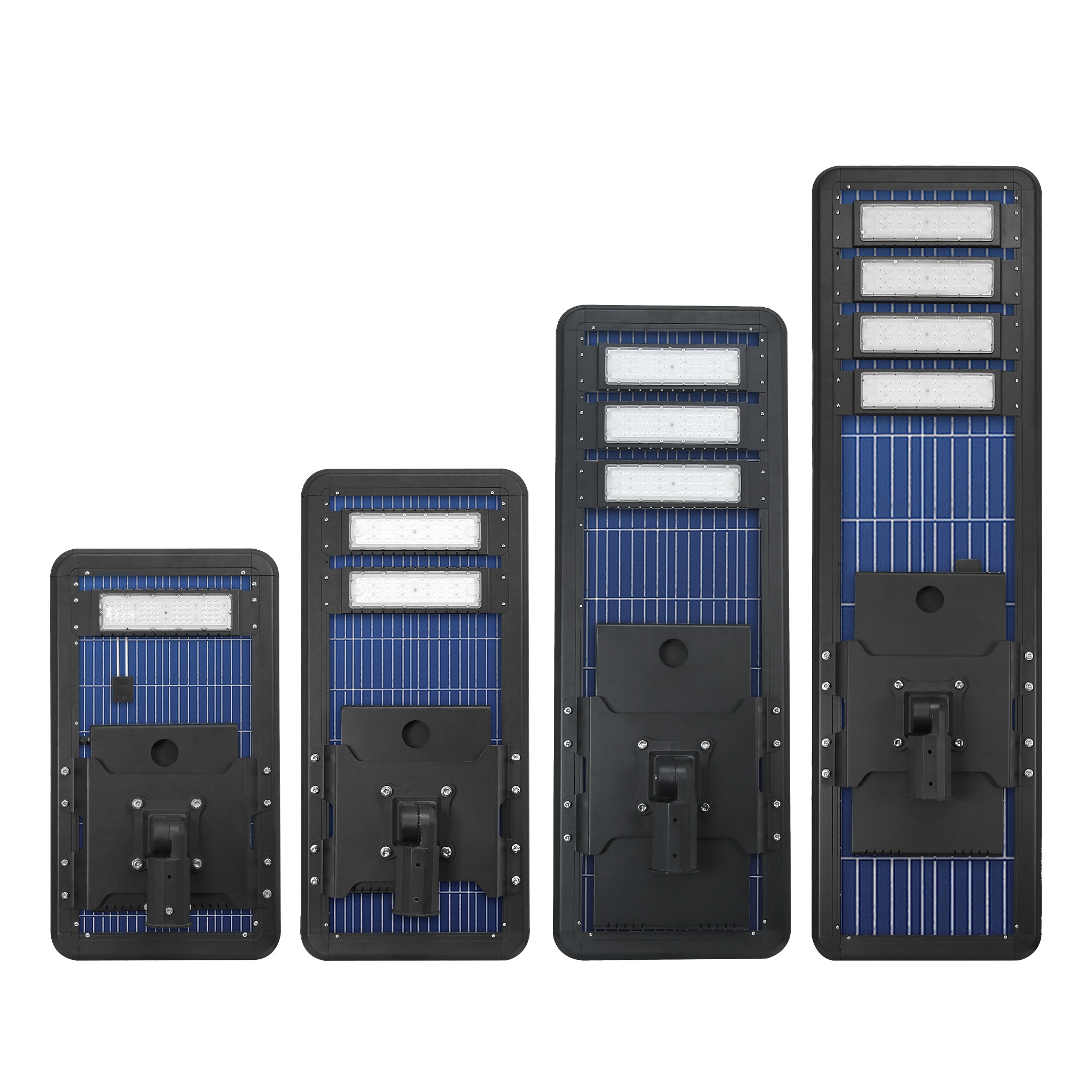

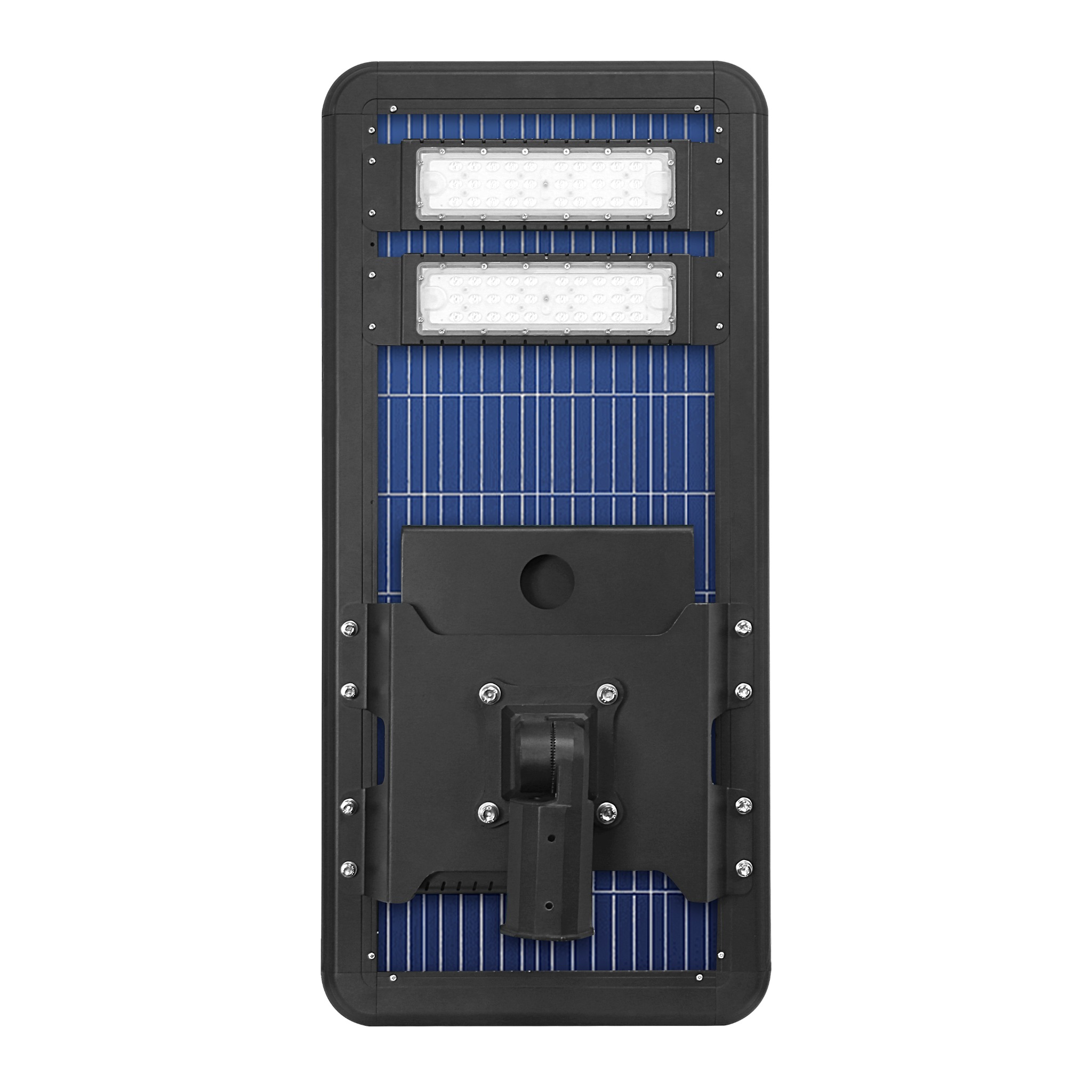

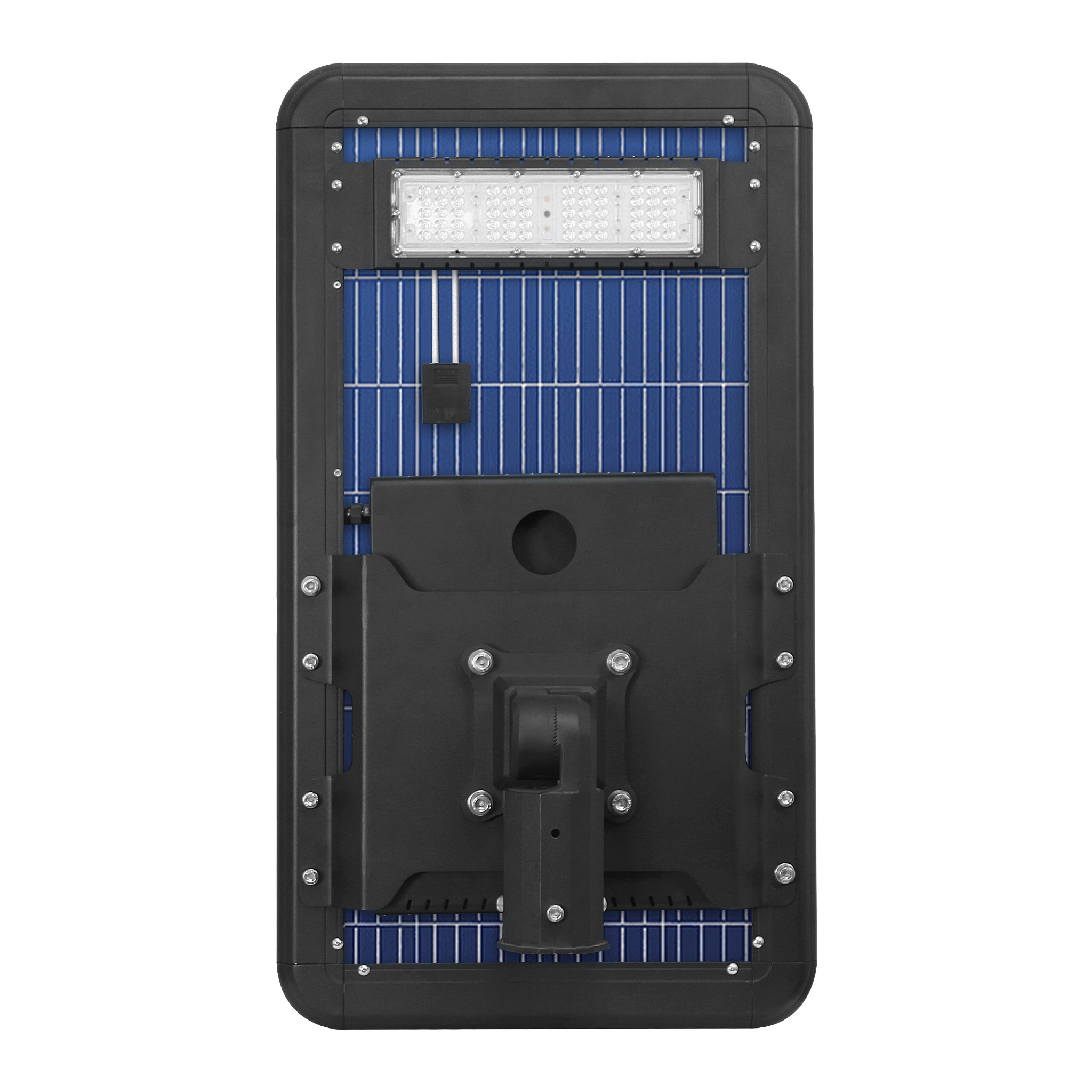

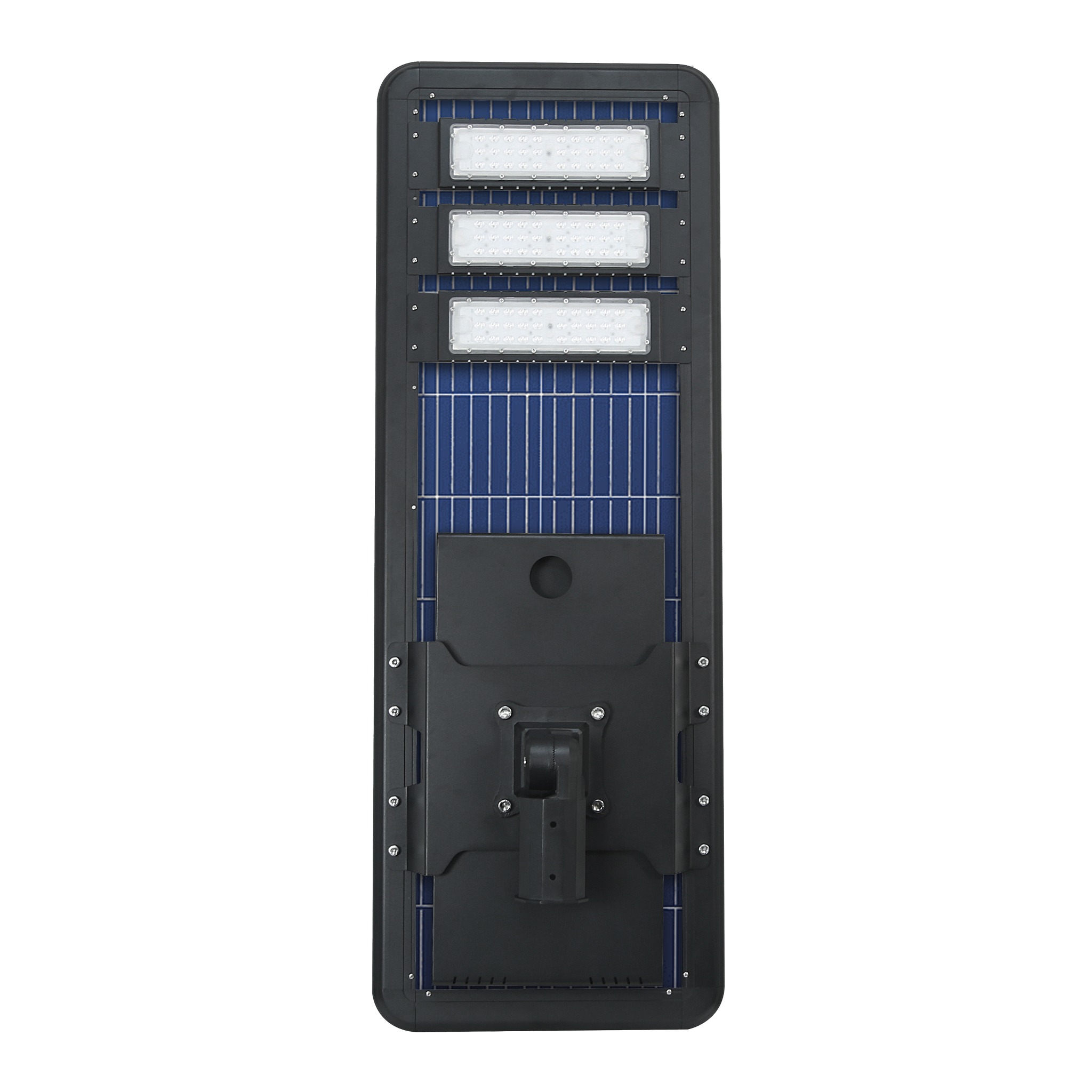

LED module layout
Original photos show the module arrangements across the four models.
Solar panel surface
Panel placement is visible in the product photographs.

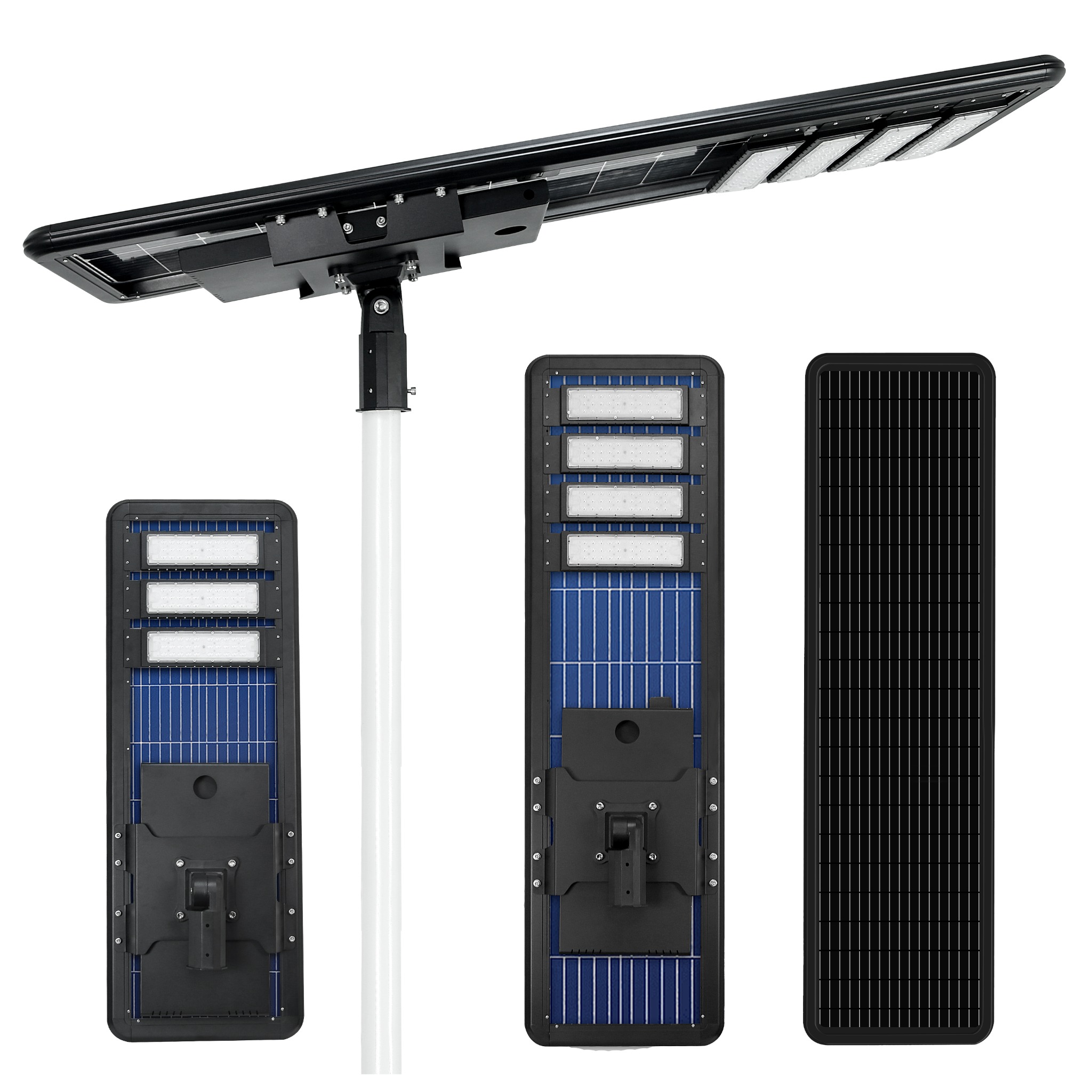

Pole mounting
Assembled views show the bracket and installed orientation.
Match the model to the site
A product image alone cannot establish a correct road lighting configuration. Share these inputs for a manual engineering review:
- Installation country and local solar conditions
- Road width, pole height and pole spacing
- Operating hours and backup requirement
- Quantity and installation schedule
Product demonstration
WIL New Energy product overview. Wattage and efficacy figures shown in the video require confirmation against the selected WIL model and its current datasheet.

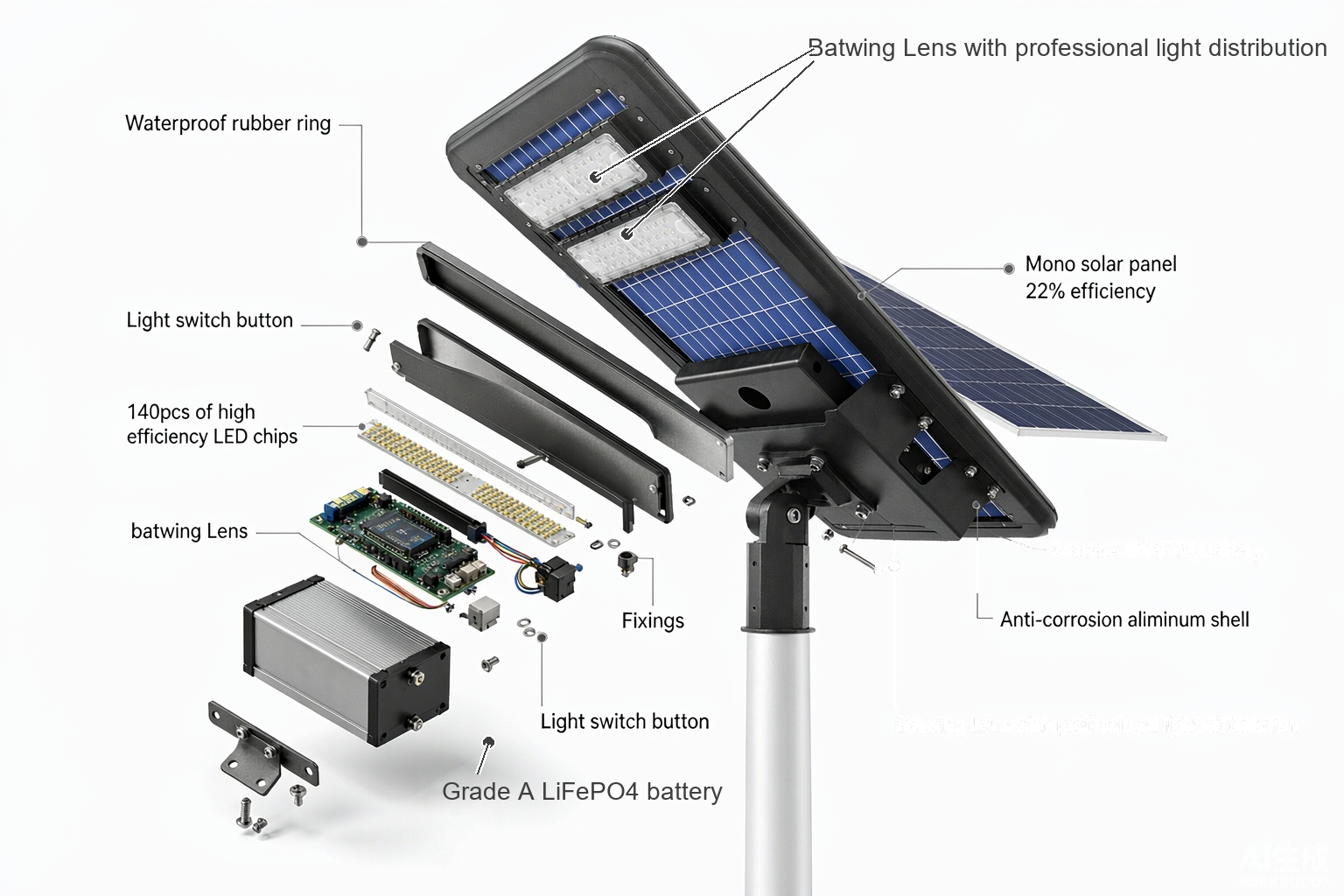

Exploded view
Tap or click the diagram to view it at full size. Component specifications shown in the supplied graphic require confirmation for the selected model.
Mono Solar Panel
Panel rating varies across the four listed models.
Read details
Cell grade and conversion efficiency need the selected model datasheet.
LED Module
The LED layout is shown in the exploded diagram.
Read details
Chip count, package and output need model-matched confirmation.
Aluminum Housing
Die-cast and extruded aluminum are listed in the model table.
Read details
Confirm the finish and site corrosion requirement for the selected model.
Status Indicator
Indicator position is shown in the supplied drawing.
Read details
Its status behavior and service instructions need the model manual.
Light Switch
Switch position is shown in the supplied drawing.
Read details
Operating behavior depends on the final controller configuration.
LiFePO4 Battery
Battery chemistry and capacity are listed by model.
Read details
Confirm pack voltage, cell grade and protection details for the quote.
Specifications by model
Owner-supplied configuration data. Values marked * require unit, conditions, model-matched reports or terms to be confirmed.
| Specification | WIL-50 | WIL-65 | WIL-85 | WIL-120 |
|---|---|---|---|---|
| Rated LED power | To be confirmed | |||
| LED chip options * | 3030 / 5050 / 7070 | 3030 / 5050 / 7070 | 3030 / 5050 / 7070 | 3030 / 5050 / 7070 |
| Color temperature | 3000 / 4500 / 6000 K | 3000 / 4500 / 6000 K | 3000 / 4500 / 6000 K | 3000 / 4500 / 6000 K |
| Luminous flux * | 6,000 lm | 9,200 lm | 12,300 lm | 23,000 lm |
| Efficacy entry * | 0.98 (unit unclear) | 0.98 (unit unclear) | 0.98 (unit unclear) | 0.98 (unit unclear) |
| Solar panel rating | 50 W | 65 W | 85 W | 120 W |
| Solar panel type | Monocrystalline, Grade A (owner supplied) | |||
| Battery chemistry | LiFePO4 | |||
| Battery voltage * | 3.2 V / 12.8 V — configuration to confirm | |||
| Battery capacity | 260 Wh | 436 Wh | 660 Wh | 865 Wh |
| Charging time * | 5 hours — test conditions to confirm | |||
| Lighting duration * | 10 hours — control schedule to confirm | |||
| Rainy-day backup * | 7–9 rainy days — conditions to confirm | |||
| Controller | MPPT | |||
| Standard control | Light control + timer control | |||
| Optional controls * | PIR / microwave radar / 5G IoT / camera — option scope to confirm | |||
| Luminaire dimensions (mm) | 778 × 438 × 42 | 938 × 438 × 42 | 1218 × 438 × 42 | 1573 × 438 × 42 |
| Solar panel dimensions (mm) * | 740 × 400 / | 900 × 400 / | 1180 × 400 | 1535 × 400 |
| Suggested mounting height * | 4–6 m | 6–7 m | 7–8 m | 8–10 m |
| Pole diameter (mm) | 60 / 75 / 100 | |||
| IP rating * | IP68 — model-matched report pending | |||
| Housing material | Die-cast aluminum + extruded aluminum | |||
| Warranty * | 8 years — approved terms pending | |||
* Preliminary owner-supplied entries for review. Performance and compliance claims must be matched to the final model configuration and applicable documents.
Product advantages
The configuration options below are based on the owner worksheet. Final operating performance depends on the selected model and project conditions.
Four model choices
Compare the stated panel and battery capacities for WIL-50 to WIL-120.
Project-led selection
Road geometry, operating hours and local sunlight are reviewed by the team.
Control options
Light and timer control are listed; additional options require configuration confirmation.
Project conditions to review
Potential application directions from the owner worksheet. Final suitability is assessed against the specific site and selected model.
Model-matched project references
This section is reserved for confirmed GPT Series installations. A project will appear here only after its product model, location, photographs and permission to publish are checked.
Case materials to be added
Installation images, location, model, project conditions and outcome.
From project inputs to a reviewed proposal
Share site requirements
Country, road width, pole height, spacing, operating hours and quantity.
Manual engineering review
Our team assesses model options and the operating conditions. No automated lighting calculation is claimed.
Confirm proposal
Review the selected configuration, documents, commercial terms and schedule together.
Match every claim to its model
Photometric report
Exact model report to be added
IP test and certificates
Valid files and scope to be confirmed
Drawings and installation manual
Approved documents to be added
Real project case
Only model-matched projects will be linked
Request an engineering review
Share the destination country, road width, pole height, expected operating hours and quantity. Our team will review the project requirements manually.
