GPT Tianqin Series Solar Street Light
An integrated solar street light with automatic panel cleaning, LiFePO4 battery storage and configurable lighting controls. Four sizes for municipal roads, schools, communities and industrial parks.
A closer look at the product
Automatic panel cleaning
An integrated cleaning assembly is shown on the solar panel side.

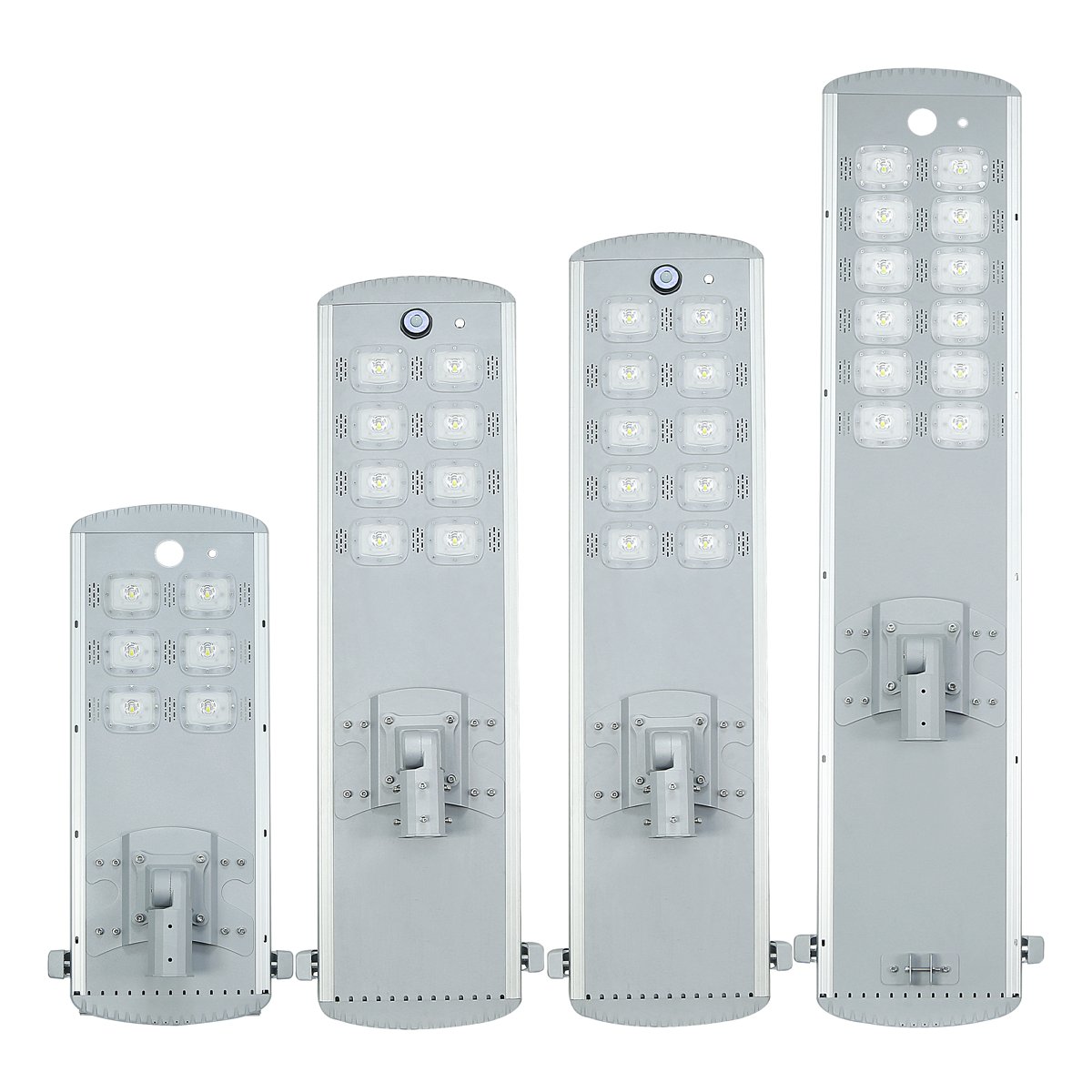

Four LED layouts

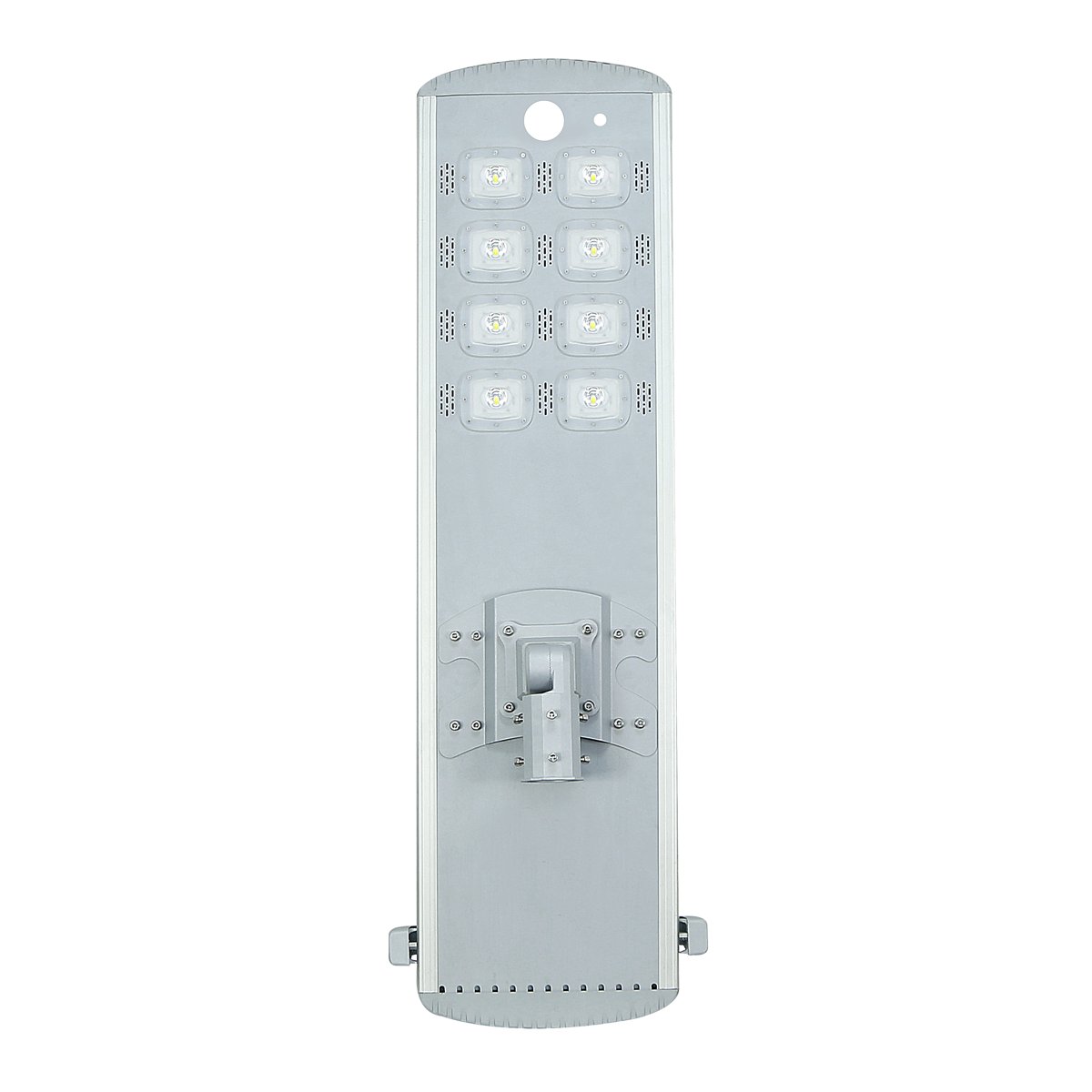

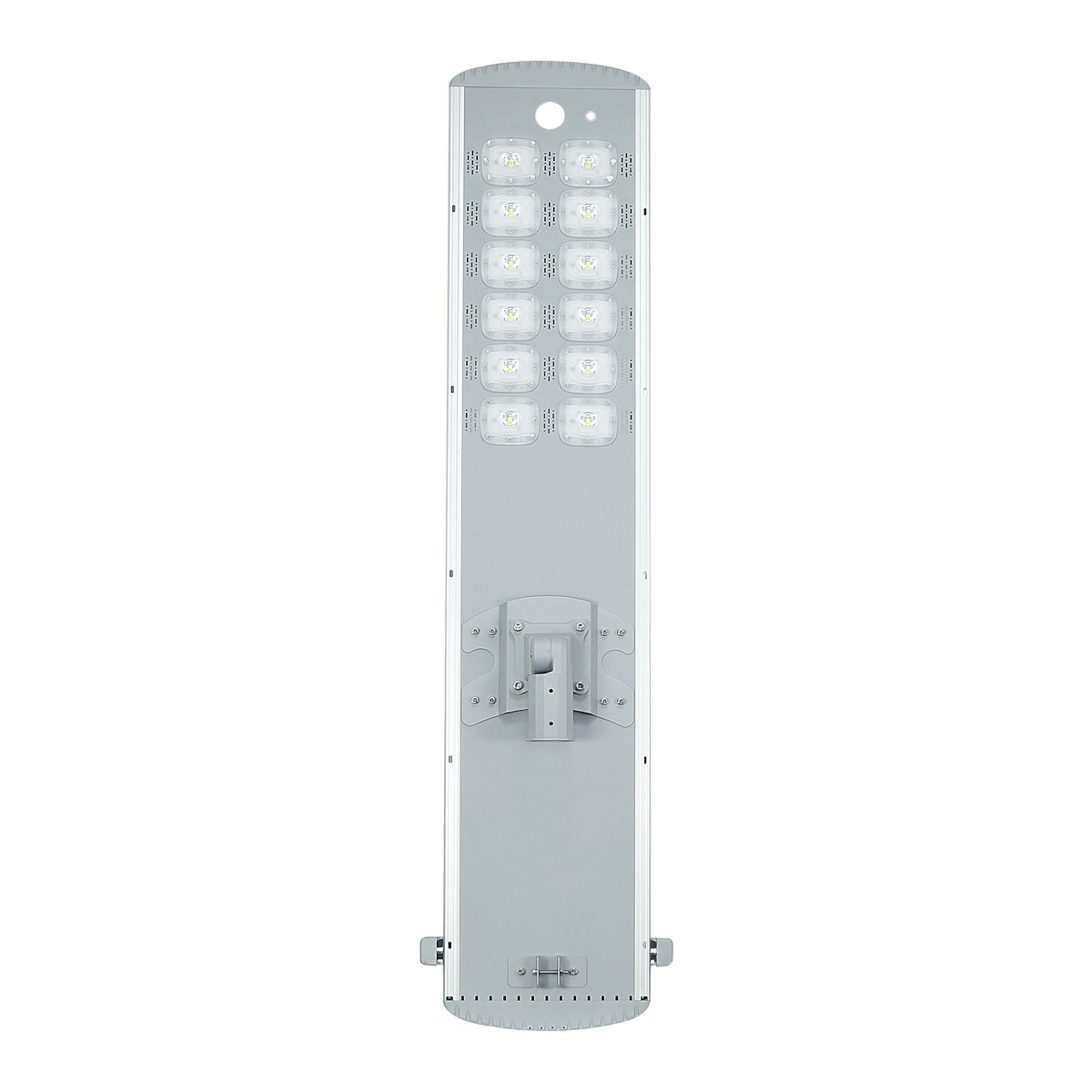

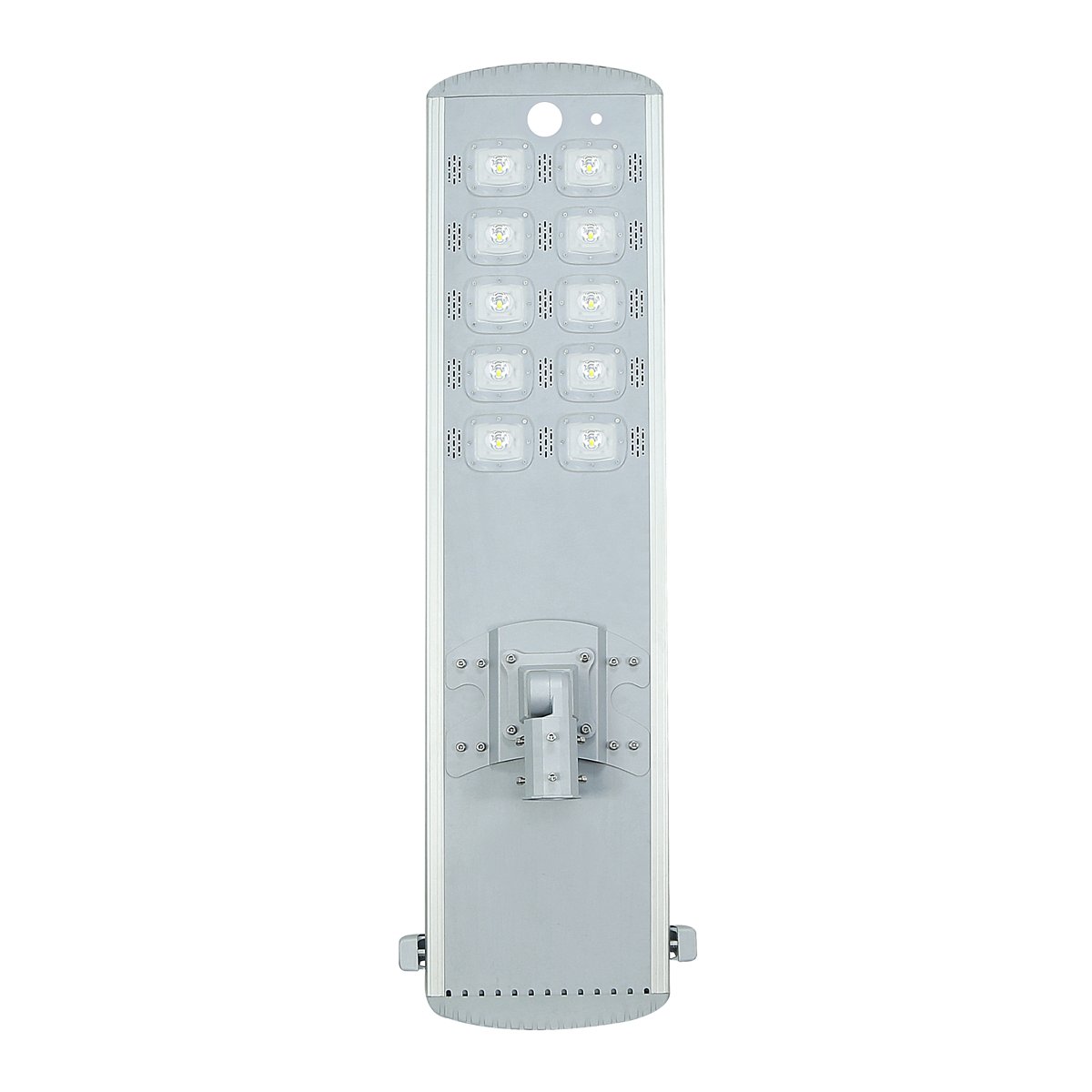

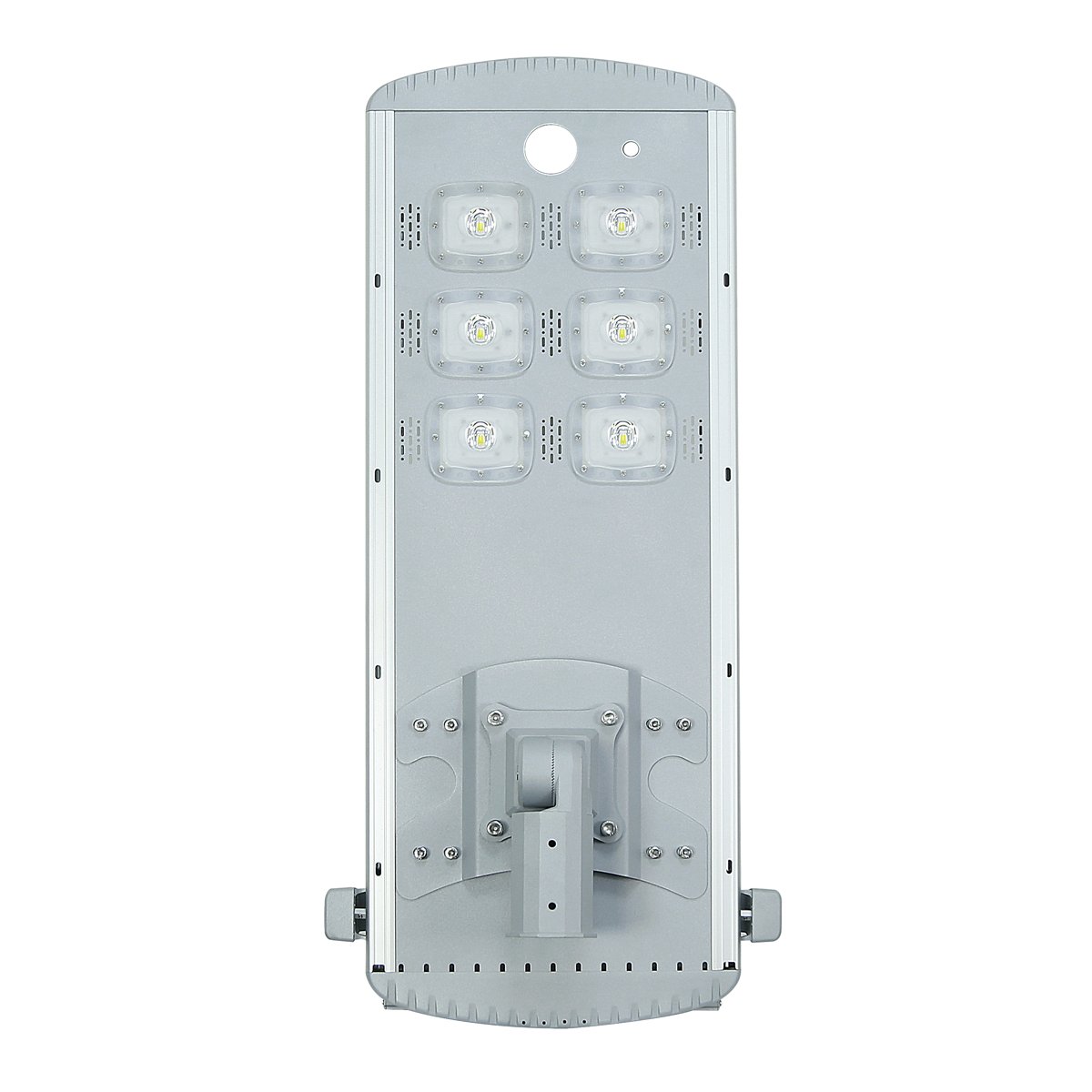

Choose from 6, 8, 10 and 12 LED module layouts.

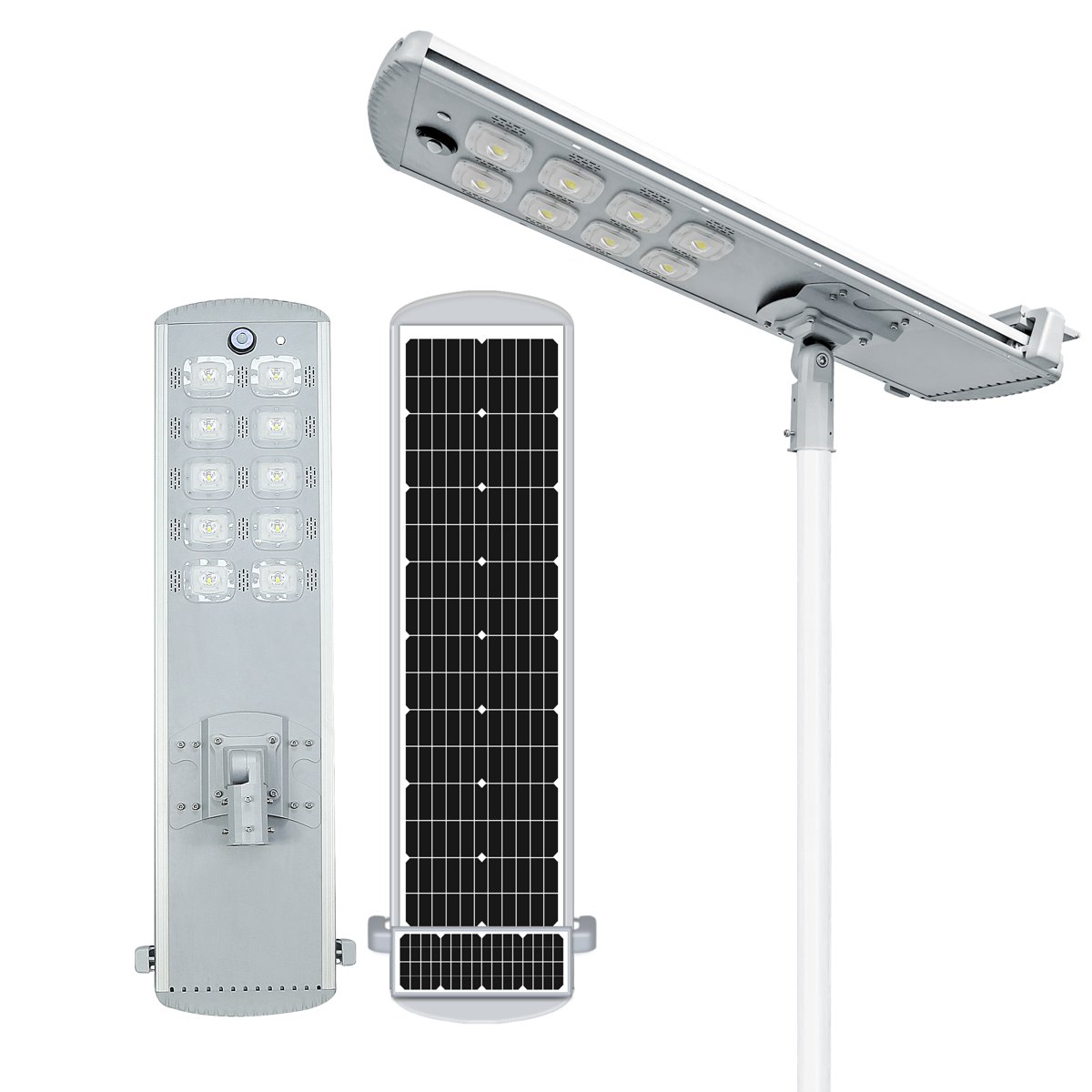

Adjustable mounting
Assembled product views show the pole bracket and mounting orientation.
Match the model to the site
A product image alone cannot establish a correct road lighting configuration. Share these inputs for a manual engineering review:
- Installation country and local solar conditions
- Road width, pole height and pole spacing
- Operating hours and backup requirement
- Quantity and installation schedule
Product demonstration
Product presentation with English narration.

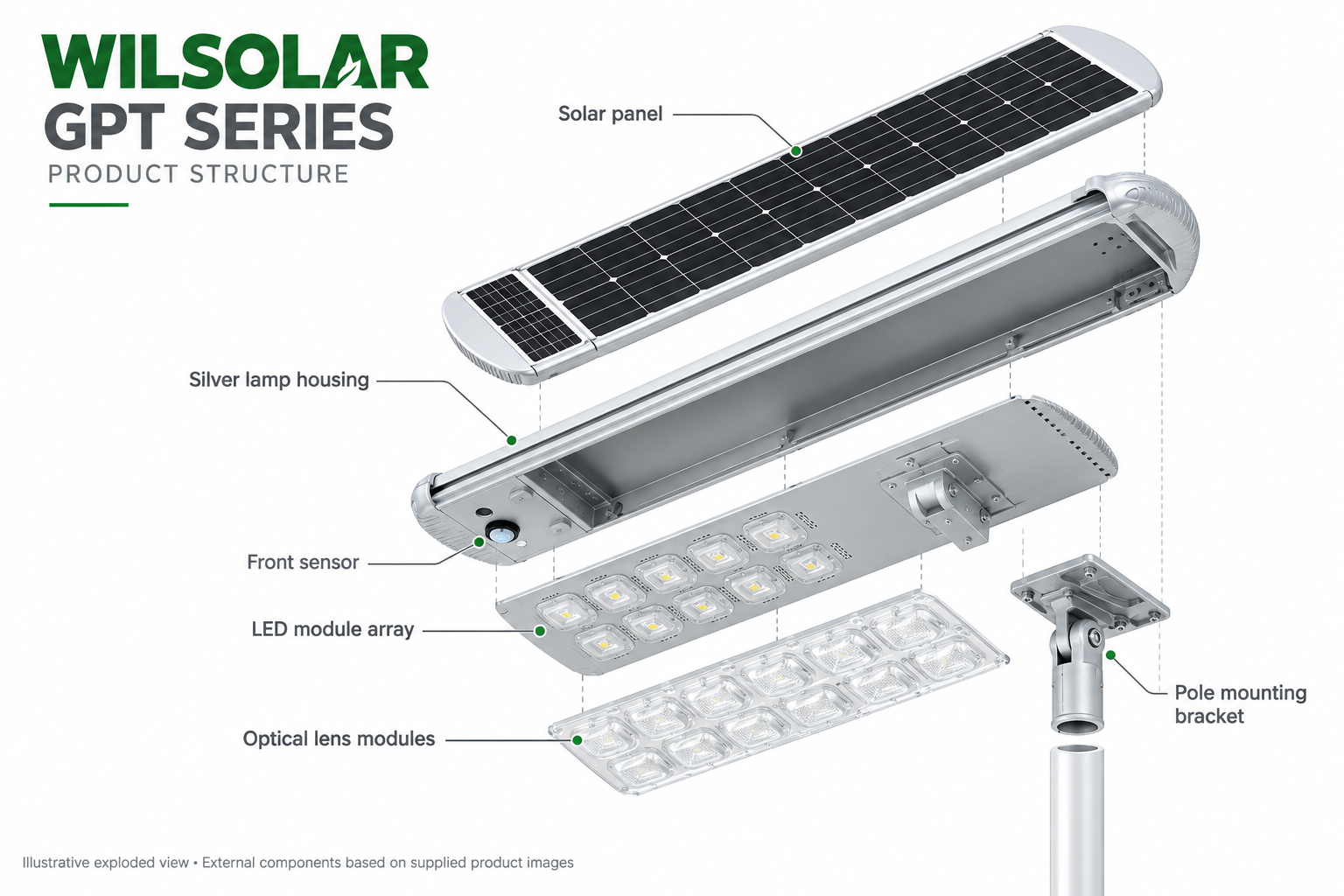

Exploded view
Click the image to view the full-size structure diagram.
Specifications by model
| Specification | WILL-TQ1001 | WILL-TQ1002 | WILL-TQ1003 | WILL-TQ1004 |
|---|---|---|---|---|
| Maximum LED power (initial) | 20 W | 30 W | 80 W | 100 W |
| Operating power / dimming | To confirm | To confirm | 80 / 25 W | 100 / 30 W |
| LED chip options | 3030 / 5050 / 7070 | |||
| Color temperature | 3200 / 4500 / 6200 K | |||
| Luminous flux | 3700 lm | 5550 lm | 14800 lm | 18500 lm |
| Luminous efficacy | 185 lm/W | 185 lm/W | 185 lm/W | To confirm |
| Solar panel rating | 45 W | 60 W | 80 W | 120 W |
| Solar panel type | Monocrystalline | |||
| Solar panel voltage | 9 / 18 V — to confirm | 9 / 18 V — to confirm | 9 / 18 V — to confirm | 12.8 V — to confirm |
| Battery chemistry / cell | LiFePO4 / 32650 | |||
| Battery voltage | 3.2 V¹ | 3.2 V¹ | 3.2 V¹ | 12.8 V¹ |
| Battery capacity | 100 Ah | 150 Ah | 200 Ah | 80 Ah |
| Battery energy | 320 Wh | 480 Wh | 640 Wh | 1024 Wh |
| Charging time | 6 h | To confirm | 5 h | 5 h |
| Lighting duration | Schedule to confirm | 12 h | 12 h | 12 h |
| Rainy-day backup | 7 days | |||
| Controller options | MPPT / PWM | |||
| Standard controls | Light control + timer control | |||
| Optional controls | PIR / microwave radar / 4G IoT / camera | |||
| Luminaire dimensions (mm) | 998 × 373 × 50 | 1233 × 373 × 50 | 1543 × 373 × 50 | 2208*373*50 |
| Solar panel dimensions (mm) | 903*313*45 | 1130*351*45 | 1440*351*45 | 2101*353*45 |
| Suggested mounting height | 4–6 m | 6–8 m | 8–10 m | To confirm |
| Suggested pole spacing | 8 m | 10 m | 15 m | 25–30 m |
| Pole diameter | 60 / 70 mm | |||
| Beam angle | 120° | |||
| IP rating | IP65 | |||
| Housing material | Die-cast aluminum + extruded aluminum + PC | |||
| Warranty | 5 years | |||
¹ Battery voltages inferred from the supplied Wh ÷ Ah values; please confirm the final configuration.
Product advantages
Select the lighting and battery configuration for the site, operating schedule and available sunlight.
Automatic panel cleaning
The integrated cleaning assembly supports solar panel maintenance.
LiFePO4 energy storage
Four supplied battery energy options: 320, 480, 640 and 1,024 Wh.
Configurable controls
Light and timer control, with optional PIR, radar, 4G IoT and camera configurations.
Project conditions to review
Applications include municipal roads, rural roads, schools, residential communities and industrial parks.
Model-matched project references
Tianqin model-specific installation photographs and project details can be added here.
Case materials to be added
Installation images, location, model, project conditions and outcome.
From project inputs to a reviewed proposal
Share site requirements
Country, road width, pole height, spacing, operating hours and quantity.
Manual engineering review
Our team assesses model options and the operating conditions. No automated lighting calculation is claimed.
Confirm proposal
Review the selected configuration, documents, commercial terms and schedule together.
Match every claim to its model
Photometric report
Exact model report to be added
IP test and certificates
Valid files and scope to be confirmed
Drawings and installation manual
Approved documents to be added
Real project case
Only model-matched projects will be linked
Request an engineering review
Share the destination country, road width, pole height, expected operating hours and quantity. Our team will review the project requirements manually.
